Model 10007X Process Probe
Engineered for precision and reliability in extreme environments, delivering accurate, repeatable measurements down to 1.5 K.
Engineered for precision and reliability in extreme environments, delivering accurate, repeatable measurements down to 1.5 K.
The unique gold-plated copper probe tip delivers industry-leading thermal response time with responses reaching 100 ms or better (condition dependent).
Housed in a robust 304 stainless steel body with a hermetically sealed connector, this sensor is built for pressurized or evacuated systems and is compatible with myriad cryogenic process fluids, flows, and geometries.
Ideal for applications where measurement speed and accuracy are non-negotiables and where reliability simply cannot be compromised, such as aviation and spaceflight applications.

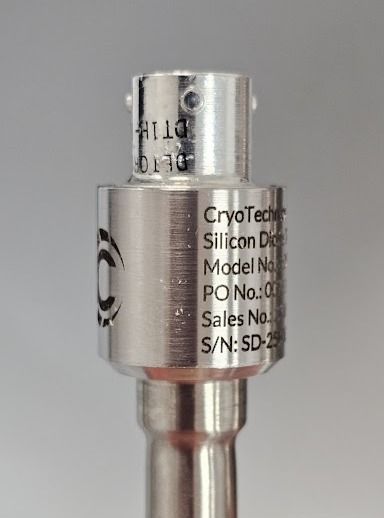

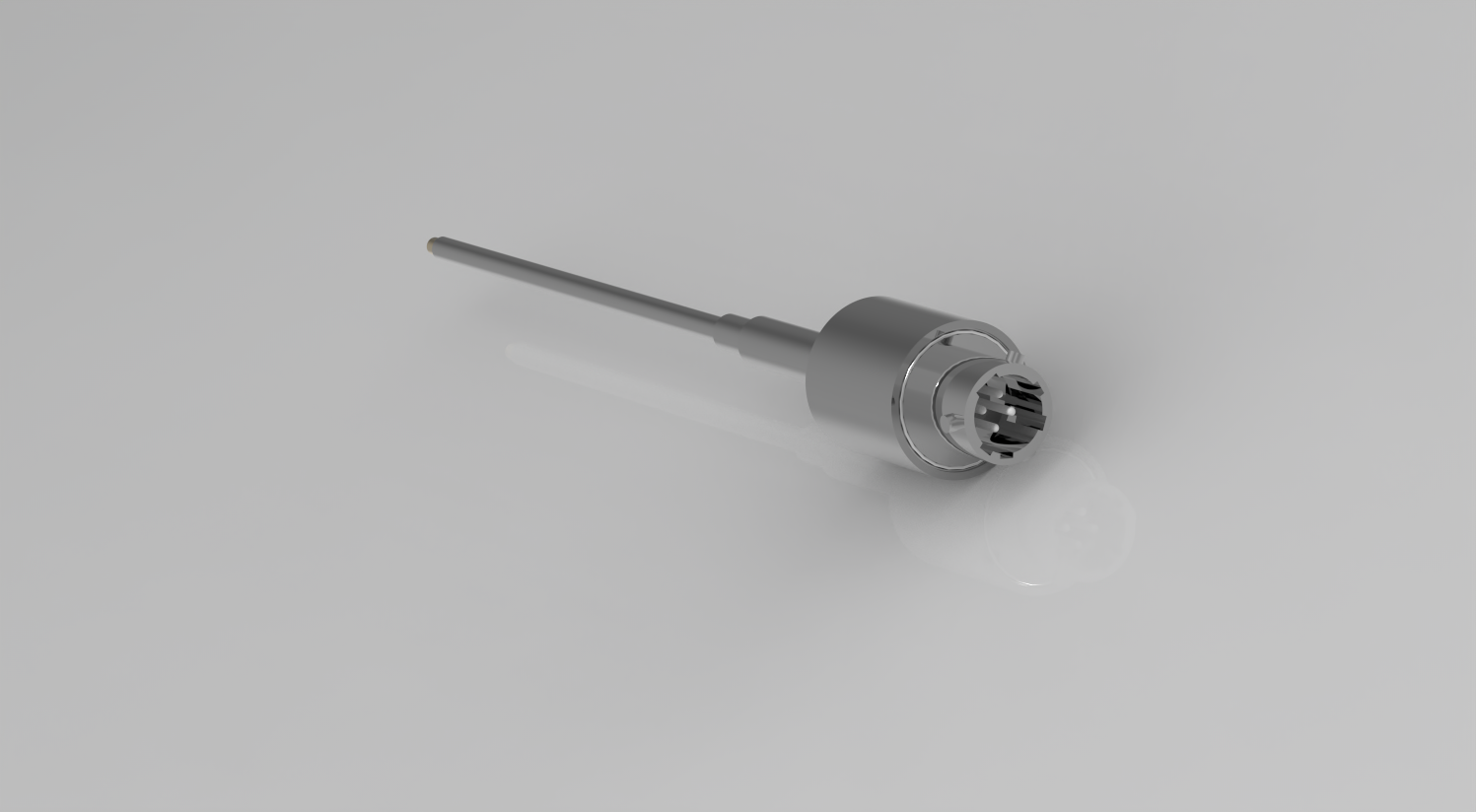

Engineered for precision and reliability in extreme environments, the all-new CryoTechnics Model 10007X is a silicon diode cryogenic temperature probe designed to deliver accurate, repeatable measurements from room temperature down to 1.5 K. Housed in a robust 304 stainless steel body with a hermetically sealed connector, this sensor is built for pressurized or evacuated systems and is compatible with myriad cryogenic process fluids, flows, and installation geometries.
The probes should be used where measurement speed and accuracy are non-negotiables and where reliability simply cannot be compromised as in aviation and spaceflight applications.
CryoTechnics goes beyond hardware to support our customers with engineering insight at every stage of development. In addition to design services, we offer FEA, CFD, and thermal modeling to evaluate loading, resonances, and ensemble behaviors to predict system performance under real-world conditions. In mission-critical programs, this capability reduces our customers' development risks, accelerates integration, and ensures that our sensors operate reliably in the most demanding environments.
CryoTechnics are the experts that can deliver this comprehensive and advanced solution, and we are still the only AS9100-certified manufacturer of cryogenic thermometry products. Don't settle for anything less.
| ELECTRICAL | |
|---|---|
| Sensor Type | Diode-connected bipolar junction transistor |
| Recommended excitation [μA] | 10 |
| Maximum Reverse Voltage [V] | 50 |
| Interchangeability | SD-179 Standard Response Curve |
| Nominal V(T) Response [V] 1.5 K | 4.2 K | 77.4 K | 273.2 K |
1.89 | 1.79 | 1.03 | 0.63 |
| Connection | MIL-DTL-26482 Bayonet, 4-pin |
| THERMAL | |
| Repeatability | Better than ±10 mK at 4.2 K |
| Thermal Response [msec] | 100 or better depending on process conditions |
| Accuracy Groups [±K] 2-25 K | 25-300 K | 300-400 K |
A' ±0.15 | ±0.25 | ±0.25 A ±0.25 | ±0.5 | ±0.5 B ±0.5 | ±0.5 | ±1 C ±1 | ±1 | ±2 |
| PHYSICAL | |
| Probe Housing | Stainless Steel (304); Exposed sensing capsule (gold-plated OFHC copper) |
| Probe Mass [g] | 50 |
| Insertion Length | 3 in.; Custom lengths available |
| Process Connection | 1/8 in. (100071) or 1/4 in. (100072) compression; AS-threaded available |
| Pressure Capability | 20.7 barg (300 psig); Consult factory for higher pressure applications |
